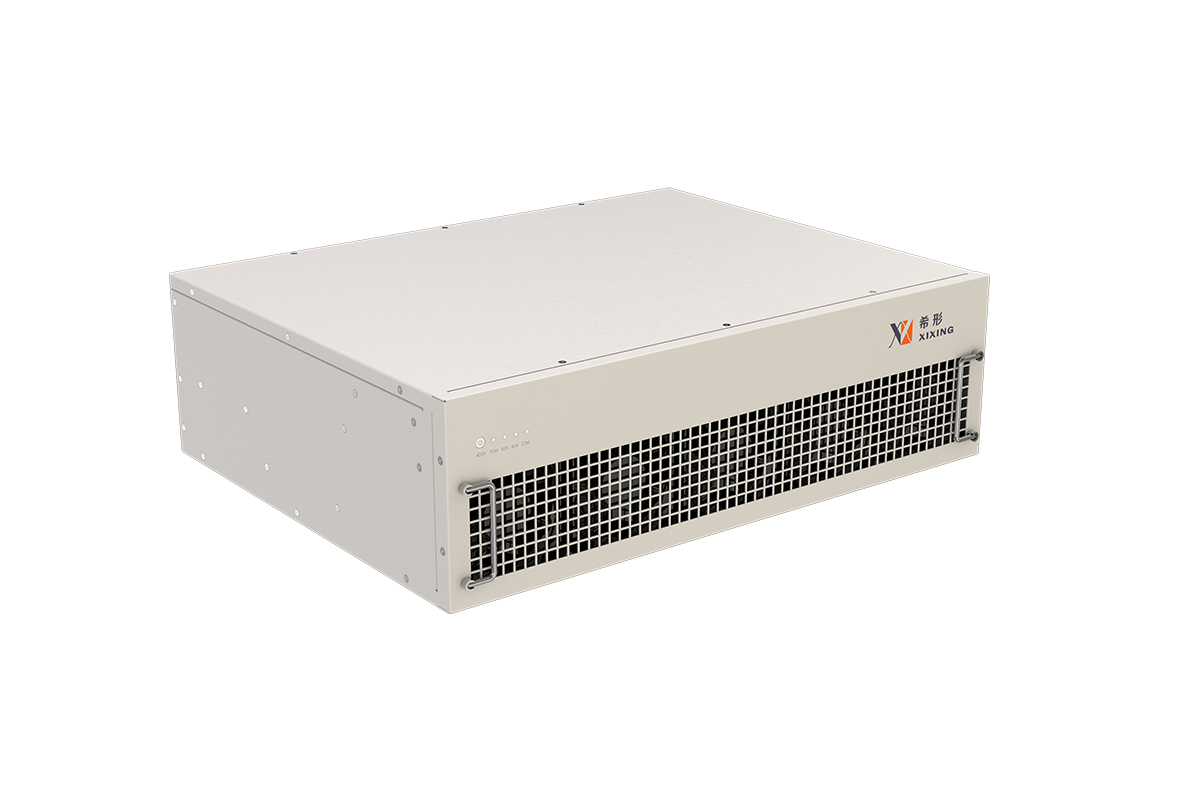

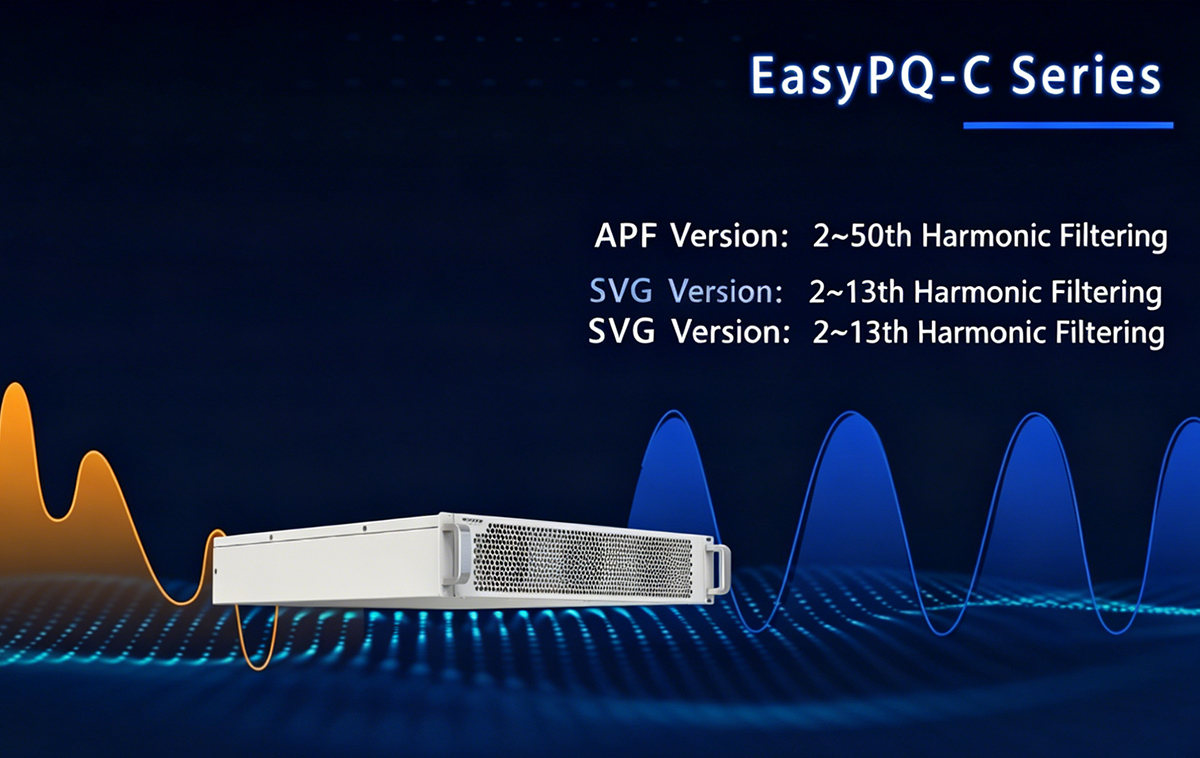

EasyPQ-C SVG

The EasyPQ-c series compact SVG modules employ an internal three-level topology, available in both three-phase three-wire and four-wire configurations. Designed for comprehensive power quality management, these modules deliverprecise reactive power compensation, and dynamic correction of three-phase current imbalance.

With high compensation accuracy and robust performance under fluctuating loads, theEasyPQ-C series ensures stableand reliable operation of customers' power distribution systems in demanding industrial environments.

TECHNICAL DATA

Category	Item		Specification
Name	Product Name		SVG
Specification	Voltage Level		220V/380V/400V/415V
	Module Specification (380V)		50kVar	75kVar	100kVar	150kVar
	Module Dimensions WDH (Unit: mm)	480530200	✔
	Module Dimensions WDH (Unit: mm)	680530200	✔	✔	✔	✔

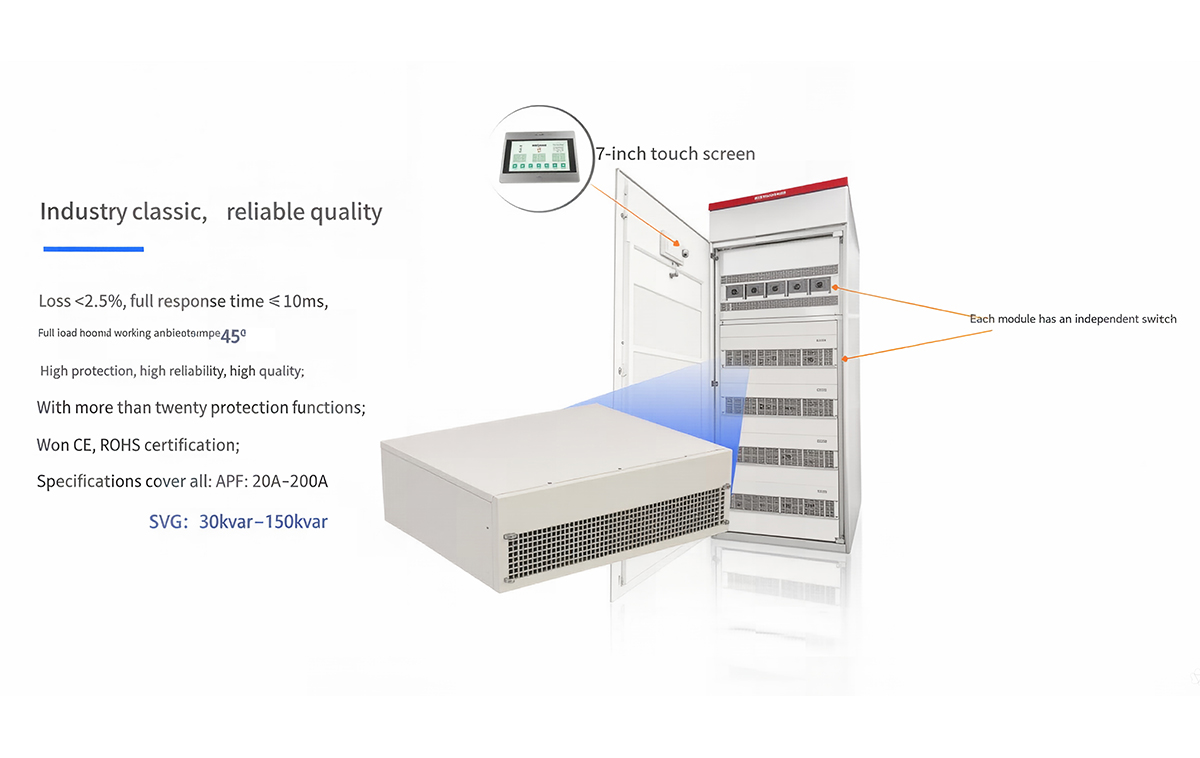

	Maximum Parallel Units		Unlimited
	Maximum Cabinet Capacity (380V) WDH (Unit: mm)	6006002200	200kVar
		6008002200	300kVar
		8008002200	600kVar
Input	Rated Input Voltage		220V (-20%～+20%) 380V (-20%～+20%) 400V (-20%～+15%) 415V (-20%～+10%)
	Grid Frequency		50Hz/60Hz
	Current Transformer Ratio		50/5 ～ 30000/5
Function	Harmonic Compensation		2nd–13th order (50% of rated current)
	Harmonic Filtering Efficiency		Complies with or exceeds JB/T 11067-2011 standard requirements
	Reactive Power Compensation		-1 to +1 adjustable (within rated capacity)
	Three-Phase Unbalance Compensation		100% full compensation
Communication Protocol	Communication Method		Modbus Protocol
	Communication Interface		RS485, Ethernet (optional), WiFi (optional)
	Host Computer Software		Available, all parameters can be set via host computer
	Fault Alarm		Available, up to 500 alarm records
	Monitoring		Supports individual module monitoring / centralized system monitoring
Technical Indicators	Full Response Time		≤20ms
	Efficiency		97.5%
	Protection Functions		Overvoltage, undervoltage, overheating, overcurrent, short circuit and more than twenty other protections
Mechanical Characteristics	Module Weight (480mm width)		28.5KG	/	/	/
	Module Weight (680mm width)		34.5KG	38.5KG	38.5KG	42.5KG
	Color		White RAL7035
Environmental Requirements	Operating Temperature		-10℃~+45℃
	Altitude		≤5000 meters (derating 1% per 100m above 1000m)
	Relative Humidity		≤95%, non-condensing
	Protection Degree		Module IP20 + Electronic Layer IP54
	Pollution Degree		3
