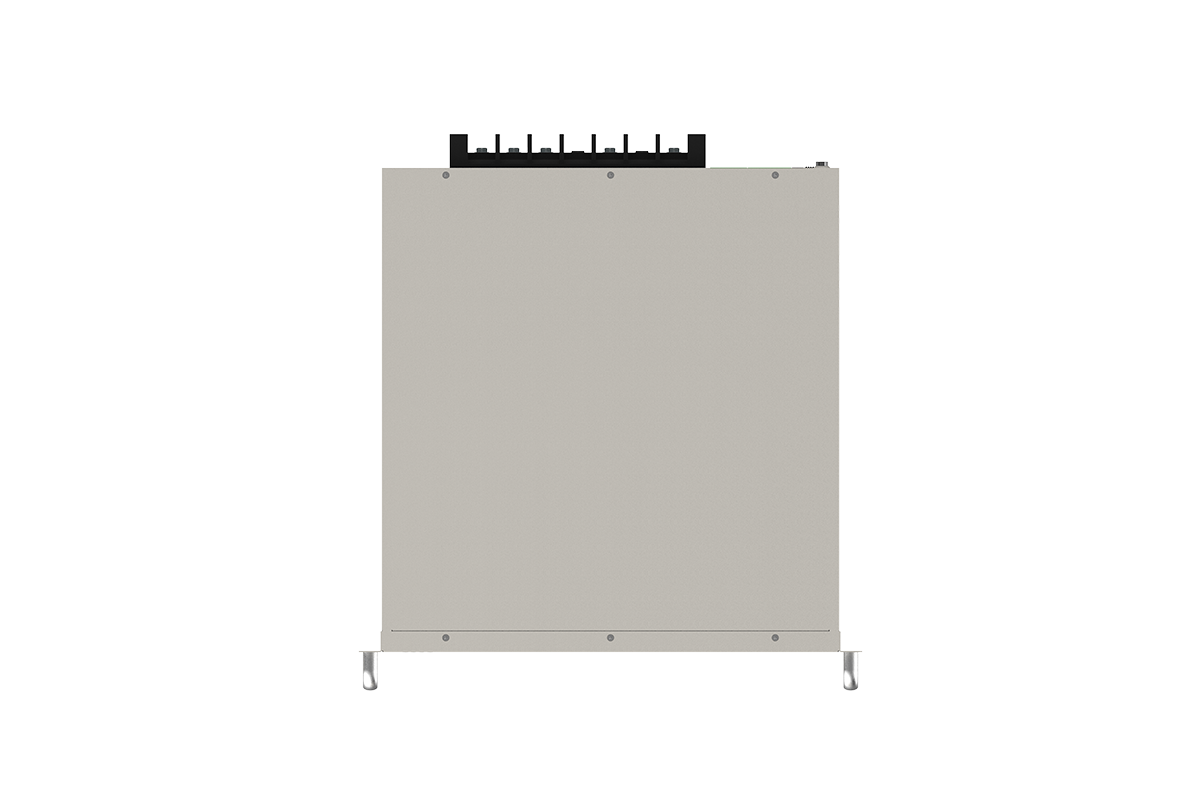

EasyPQ-K SVG

The EasyPQ-K series compact SVG modules employ an internal three-level topology, available in both three-phasethree-wire and four-wire configurations. Designed for comprehensive power quality management, these modules deliverprecise reactive power compensation, and dynamic three-phase current imbalance correction.

With fast response and high compensation accuracy, theEasyPQ-Kseries ensures stable and efficient operation ofcustomers' power distribution systems, especially in complex industrial environments.

TECHNICAL DATA

Category	Item		Specification
Name	Product Name		SVG
Specification	Voltage Level		220V/380V/400V/415V
	Module Specification (380V)		15kVar	20kVar	30kVar	50kVar	75kVar	100kVar	150kVar
	Module Dimensions WDH (Unit: mm)	32635745	✔
		35036750		✔
		32638070			✔
		500460100				✔
		500530100					✔	✔
		500530130							✔
	Maximum Parallel Units		Unlimited
	Maximum Cabinet Capacity (380V) WDH (Unit: mm)	6006002200	400kVar
		6008002200	900kVar
		8008002200	900kVar
Input	Rated Input Voltage		220V (-20%～+20%) 380V (-20%～+20%) 400V (-20%～+15%) 415V (-20%～+10%)
	Grid Frequency		50Hz/60Hz
	Current Transformer Ratio		50/5 ～ 10000/5		50/5 ～ 30000/5
Function	Harmonic Compensation		2nd–13th order (50% of rated current)
	Harmonic Filtering Efficiency		Complies with or exceeds JB/T 11067-2011 standard requirements
	Reactive Power Compensation		-1 to +1 adjustable (within rated capacity)
	Three-Phase Unbalance Compensation		100% full compensation
Communication Protocol	Communication Method		Modbus Protocol
	Communication Interface		RS485, Ethernet (optional), WiFi (optional)
	Host Computer Software		Available, all parameters can be set via host computer
	Fault Alarm		Available, up to 500 alarm records
	Monitoring		Supports individual module monitoring / centralized system monitoring
Technical Indicators	Full Response Time		≤20ms
	Efficiency		97.5%
	Cooling Method		Intelligent Forced Air Cooling
Mechanical Characteristics	Module Weight (480mm width)		5.5KG	7.5KG	8KG	19.5KG		23.5KG	30KG
Mechanical Characteristics	Color		Black RAL9005		White RAL7035
Environmental Requirements	Operating Temperature		-10℃~+45℃
	Altitude		≤5000 meters (derating 1% per 100m above 1000m)
	Relative Humidity		≤95%, non-condensing
	Protection Degree		Module IP20
	Pollution Degree		2
