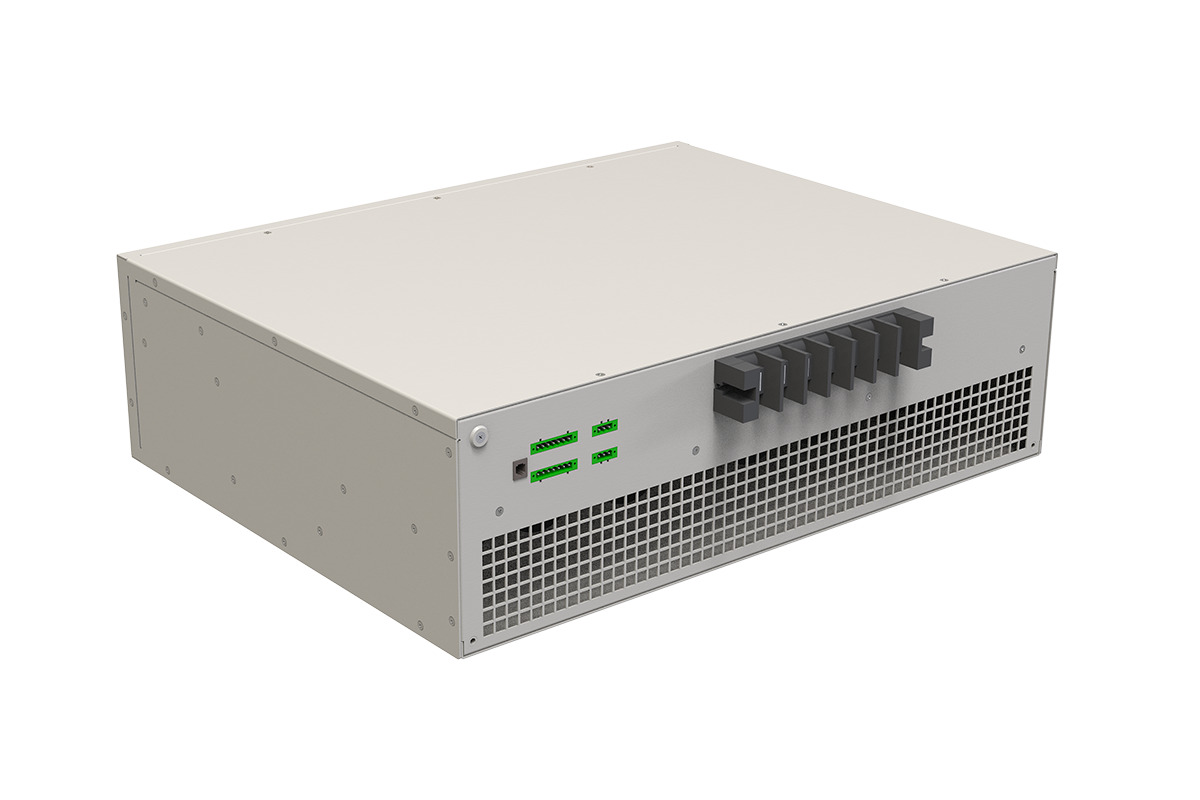

EasyPQ-C APF

The EasyPQ-C Series is a new generation of modular Active Power Filter (APF) launched by Xixing Tech. It adopts advanced three-level topology and integrates reactive power compensation, harmonic suppression (2nd to 50th harmonics), and three-phase unbalance correction into one comprehensive solution, effectively improving power quality and system stability.

With high compensation accuracy and excellent performance under dynamic loads, the EasyPQ-C series ensures reliable and stable operation of power distribution systems in various industrial environments. It has obtained CE certification and features an IP54 protection rating on the electronic layer for enhanced environmental resilience.

TECHNICAL DATA

Category	Item	Specification
Name	Product Name	APF
Specification	Voltage Level	220V/380V/400V/415V
	Module Dimensions WHD (mm)	50A	75A	100A	150A	200A
	480530200	✔	✔	✔
	680530200			✔	✔	✔
	Maximum Parallel Units	Unlimited
	Maximum Cabinet Capacity WHD (mm)	6006002200 300A	6008002200 500A		8008002200 1000A
Input	Rated Input Line Voltage	220V (-20%～+20%)
		380V (-20%～+20%)
		400V (-20%～+15%)
		415V (-20%～+10%)
	Grid Frequency	50Hz / 60Hz
	Current Transformer Ratio	50/5 ～ 3000/5
Function	Harmonic Compensation	2-50th order
	Harmonic Filtering Efficiency	Complies with or exceeds JB/T11067-2011 standard requirements
	Reactive Power Compensation	-1～+1 adjustable (within rated capacity)
	Three-Phase Unbalance Compensation	100% full compensation
Communication	Communication Protocol	Modbus Protocol
	Communication Interface	RS485, Ethernet (optional), WiFi (optional)
	Host Computer Software	Available, all parameters can be set via host computer
	Fault Alarm	Available, up to 500 alarm records
	Monitoring	Supports individual module monitoring / centralized system monitoring
Technical Indicators	Full Response Time	≤20ms
	Efficiency	97.5%
	Protection Functions	Overvoltage, undervoltage, overheating, overcurrent, short circuit and more than twenty other protections
Mechanical Properties	Module Weight (480mm width)	28.5KG
	Module Weight (680mm width)			34.5KG	38.5KG	42.5KG
	Color	White RAL7035
Environmental Requirements	Operating Temperature	-10°C ～ +45°C
	Altitude	≤5000 meters (derating 1% per 100m above 1000m)
	Relative Humidity	≤95%, non-condensing
	Protection Degree	Module IP20 + Electronic Layer IP54
	Pollution Degree	3
