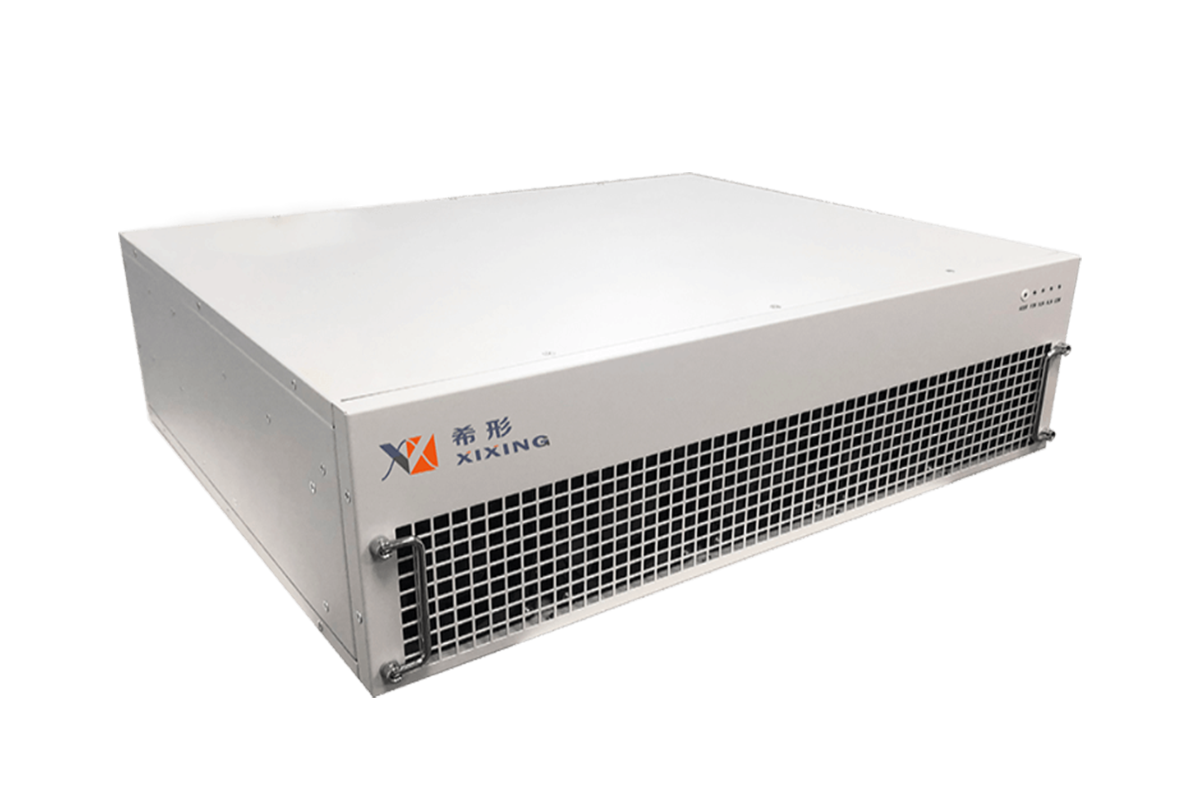

EasyPQ-HV APF

The EasyPQ-HV Series is Xixing Tech’s high-voltage Active Power Filter (APF) designed for medium and high voltage applications. It is specifically developed to address power quality issues in 690V, 500V, 480V, and other special voltage systems. With an enhanced voltage withstand capability of up to 920V, it provides reliable harmonic mitigation and power quality improvement for high-power industrial equipment.

Utilizing H-bridge topology, the EasyPQ-HV series can effectively suppress even-order harmonics and offers three compensation modes: harmonic filtering, reactive power compensation, and fixed reactive power support. It is an ideal solution for metallurgy, steel, mining, and other industries with high-voltage power distribution systems.

TECHNICAL DATA

Category	Item	Specification
Name	Product Name	APF
Specification	Voltage Level	690V / 800V
	Module Specification	100A / 100A
	Module Dimensions WDH (Unit: mm)	680550200
	Maximum Parallel Units	Unlimited
	Maximum Cabinet Capacity WDH (Unit: mm)	8008002200 600A
Input	Rated Input Voltage	690V (-20%～+20%) 800V (-20%～+15%)
	Grid Frequency	50Hz / 60Hz
	Current Transformer Ratio	100/5 ～ 3000/5
Function	Harmonic Compensation	2nd–50th order
	Harmonic Filtering Efficiency	Complies with or exceeds JB/T 11067-2011 standard requirements
	Reactive Power Compensation	-1 to +1 adjustable (within rated capacity)
Communication Protocol	Communication Method	Modbus Protocol
	Communication Interface	RS485, Ethernet (optional), WiFi (optional)
	Host Computer Software	Available, all parameters can be set via host computer
	Fault Alarm	Available, up to 500 alarm records
	Monitoring	Supports individual module monitoring / centralized system monitoring
Technical Indicators	Full Response Time	≤20ms
	Efficiency	97.5%
	Cooling Method	Intelligent Forced Air Cooling
	Protection Functions	Overvoltage, undervoltage, overheating, overcurrent, short circuit and more than twenty other protections
Mechanical Characteristics	Module Weight	44KG
Mechanical Characteristics	Color	White RAL7035
Environmental Requirements	Operating Temperature	-10°C ～ +45°C
	Altitude	≤5000 meters (derating 1% per 100m above 1000m)
	Relative Humidity	≤95%, non-condensing
	Protection Degree	Module IP20 + Electronic Layer IP42
	Pollution Degree	2
