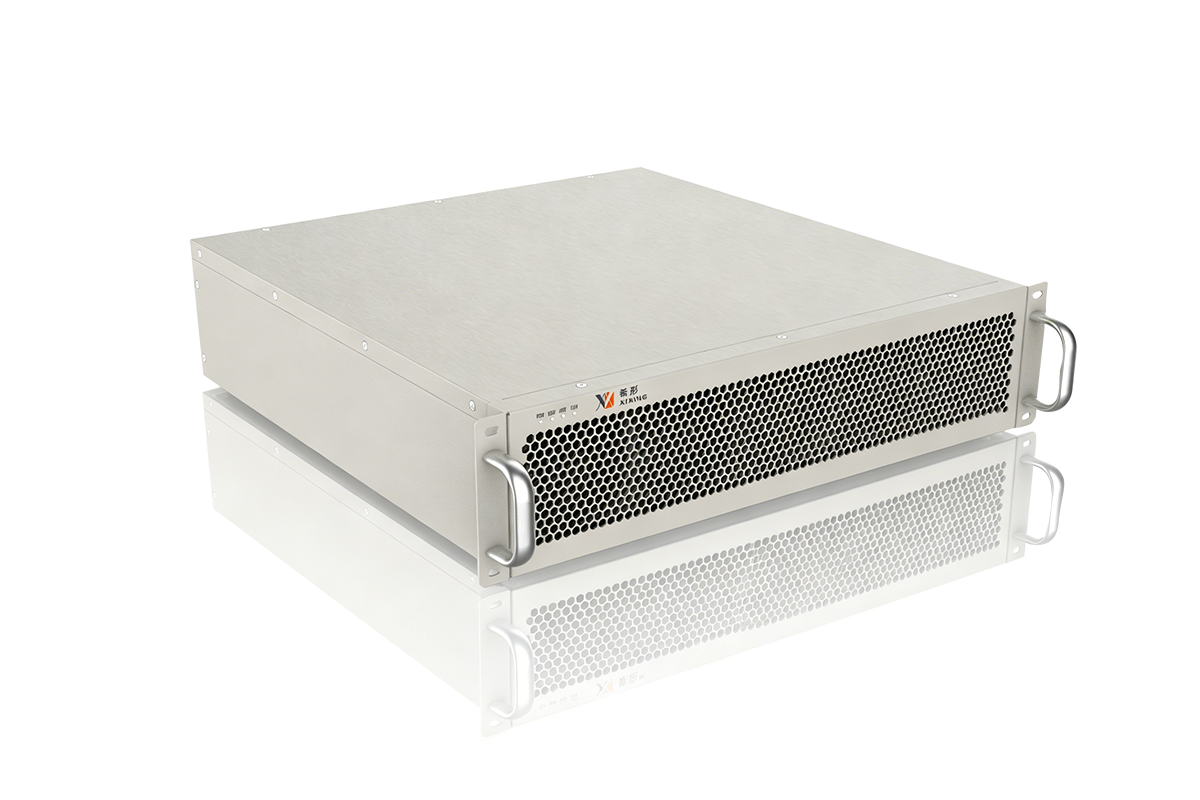

EasyPQ-K APF

The EasyPQ-Kseries compact APF modules employ an internal three-level topology, available in both three-phase three-wire and four-wire configurations. Designed for comprehensive power quality management, these modules deliverprecise reactive power compensation, effective mitigation of 2nd to 50th order harmonics, and dynamic three-phasecurrent imbalance correction.

With fast response and high compensation accuracy, the EasyPQ-K series ensures stable and efficient operation ofcustomers' power distribution systems, especially in complex industrial environments.

TECHNICAL DATA

Category	Item	Specification
Name	Product Name	APF
Specification	Voltage Level	220V/380V/400V/415V
	Module Specification		20A	30A	50A	75A	100A	150A	200A
	Module Dimensions WDH (mm)	32635745	✔
		35036750		✔
		32638070			✔
		500460100				✔	✔
		500530100						✔
		500530130							✔
	Maximum Parallel Units		Unlimited
	Maximum Cabinet Capacity WDH (mm)	6006002200	600A
		6008002200	1200A
		8008002200	1200A
Input	Rated Input Voltage	220V (-20%～+20%) 380V (-20%～+20%) 400V (-20%～+15%) 415V (-20%～+10%)
	Grid Frequency	50Hz/60Hz
	Current Transformer Ratio	50/5 ～ 10000/5				50/5 ～ 30000/5
Function	Harmonic Compensation	2nd–50th order
	Harmonic Filtering Efficiency	Complies with or exceeds JB/T 11067-2011 standard requirements
	Reactive Power Compensation	-1 to +1 adjustable (within rated capacity)
	Three-Phase Unbalance Compensation	100% full compensation
Communication Protocol	Communication Method	Modbus Protocol
	Communication Interface	RS485, Ethernet (optional), WiFi (optional)
	Host Computer Software	Available, all parameters can be set via host computer
	Fault Alarm	Available, up to 500 alarm records
	Monitoring	Supports individual module monitoring / centralized system monitoring
Technical Indicators	Full Response Time	≤20ms
	Efficiency	97.5%
	Cooling Method	Intelligent Forced Air Cooling
	Protection Functions	Overvoltage, undervoltage, overheating, overcurrent, short circuit and more than twenty other protections
Mechanical Characteristics	Module Weight	5.5KG	7.5KG	8KG	19.5KG			23.5KG	30KG
Mechanical Characteristics	Color	Black RAL9005				White RAL7035
Environmental Requirements	Operating Temperature	-10℃ ~ +45℃
	Altitude	≤5000 meters (derating 1% per 100m above 1000m)
	Relative Humidity	≤95%, non-condensing
	Protection Degree	Module IP20
	Pollution Degree	2
