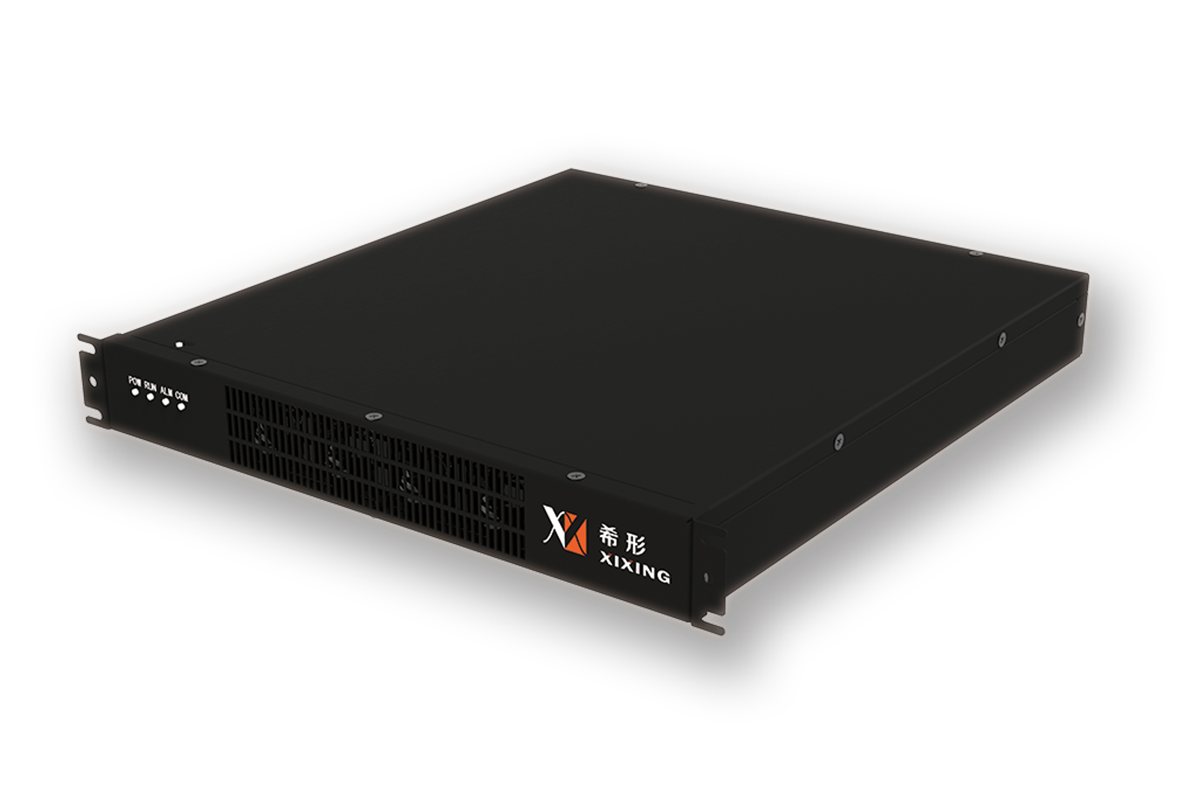

EasyPQ-S APF

The EasyPQ-S Series is our newly launched APF (Active Power Filter) device. Equipped with the latest generation Silicon Carbide (SiC) technology, it integrates reactive power compensation, harmonic suppression (governing 2nd to 50th harmonics), and three-phase unbalance correction into one comprehensive solution, significantly improving the stability of the power system.
It has obtained CE and RoHS certifications and can operate reliably in a wide temperature range of -40°C to +45°C. It also supports wide voltage fluctuations of 220V/380V/415V/480V (±20%). The product offers both wall-mounted and rack-mounted installation options for flexible deployment.
Centered on high efficiency, safety, and compactness, the EasyPQ-S Series provides all-day power quality protection for industrial and commercial power distribution systems.

TECHNICAL DATA

Category	Item		Specification
Name	Product Name		APF
Specification	Voltage Level		220V/380V/400V/415V/480V
	Module Specification		20A	30A	50A	100A	150A
	Module Dimensions WDH (mm) （Unit: mm）	32635745	✔
		35036750		✔
		32638070			✔
		480500100				✔	✔
	Maximum Parallel Units		Unlimited
	Maximum Cabinet Capacity WDH (mm) （Unit: mm）	6006002200	300A
		6008002200	900A
		8008002200	900A
Input	Rated Input Voltage		220V (-20%～+20%) 380V (-20%～+20%) 400V (-20%～+20%) 415V (-20%～+20%) 480V (Max working voltage 505V)
	Grid Frequency		50Hz/60Hz
	Current Transformer Ratio		50/5 ～ 10000/5		50/5 ～ 30000/5
Function	Harmonic Compensation		2nd–50th order
	Harmonic Filtering Efficiency		Complies with or exceeds JB/T 11067-2011 standard requirements
	Reactive Power Compensation		-1 to +1 adjustable (within rated capacity)
	Three-Phase Unbalance Compensation		100% full compensation
Communication Protocol	Communication Method		Modbus Protocol
	Communication Interface		RS485, Ethernet (optional), WiFi (optional)
	Host Computer Software		Available, all parameters can be set via host computer
	Fault Alarm		Available, up to 500 alarm records
	Monitoring		Supports individual module monitoring / centralized system monitoring
Technical Indicators	Full Response Time		≤20ms
	Efficiency		99%
	Cooling Method		Intelligent Forced Air Cooling
	Protection Functions		Overvoltage, undervoltage, overheating, overcurrent, short circuit and more than twenty other protections
Mechanical Characteristics	Module Weight		5.5KG	7.5KG	8KG	30KG
Mechanical Characteristics	Color		Black RAL9005		White RAL7035
Environmental Requirements	Operating Temperature		-10℃ ~ +45℃
	Altitude		≤5000 meters (derating 1% per 100m above 1000m)
	Relative Humidity		≤95%, non-condensing
	Protection Degree		Module IP20
	Pollution Degree		2
