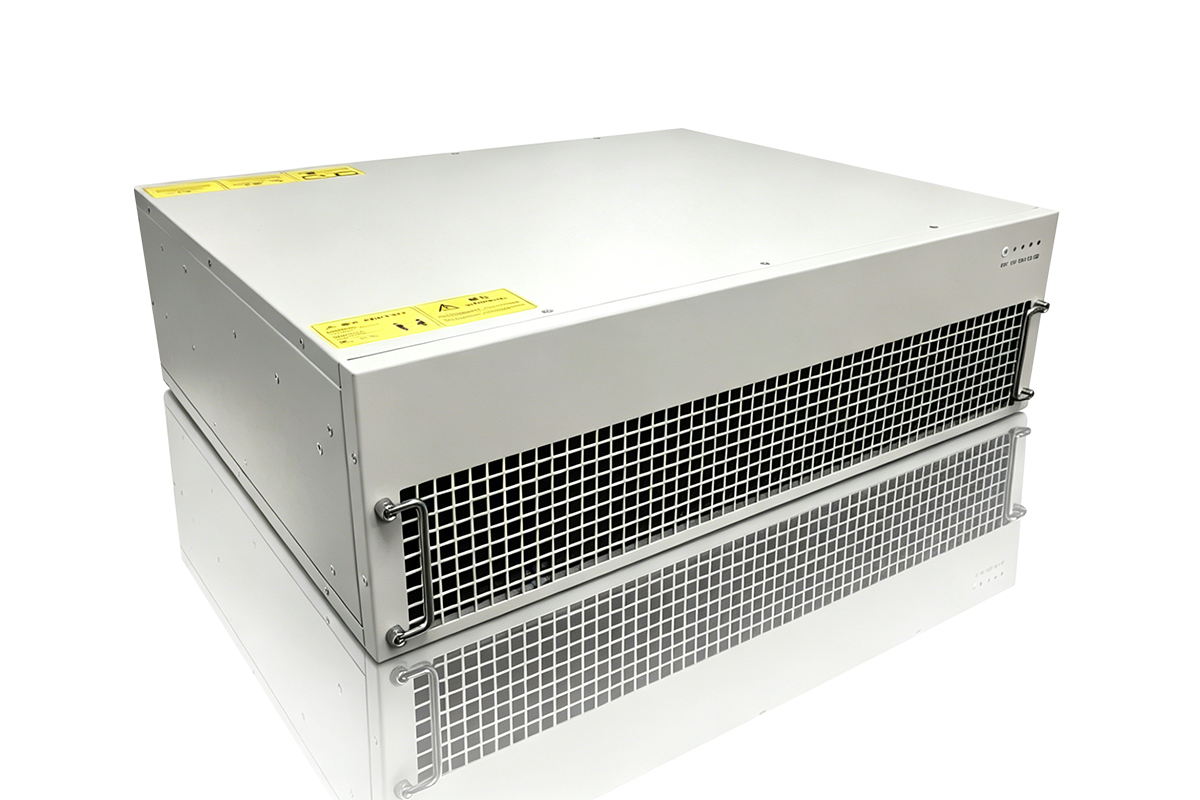

EasyPQ-HV SVG

The EasyPQ-HV SVG is a high-voltage dynamic reactive power compensation solution engineered by Xixing Technology specifically for heavy industry applications operating at 690V and 800V. Utilizing a modular architecture, the system delivers up to 810 kVar per cabinet with a dynamic response time of ≤20ms, providing comprehensive mitigation of 2nd–13th harmonics and 100% three-phase unbalance correction.

Equipped with intelligent forced-air cooling and multi-tiered protection mechanisms, the system supports unlimited parallel scalability and remote monitoring. Backed by Xixing Technology's comprehensive lifecycle services, it serves as a critical infrastructure solution for ensuring the stability and reliability of high-voltage power networks.

TECHNICAL DATA

Category	Item		Specification
Name	Product Name		SVG
Specification	Voltage Level		690V		800V
	Module Specification		50kVar	100kVar	100kVar	135kVar
	Module Dimensions (WDH, mm)		680550200
	Maximum Parallel Units		Unlimited
	Maximum Cabinet Capacity WDH (Unit: mm)	8008002200	600kVar		810kVar
Input	Rated Input Voltage		690V (-20%～+20%)		800V (-15%～+15%)
	Grid Frequency		50Hz/60Hz
	Current Transformer Ratio		100:5 ~ 10000:5
Function	Harmonic Compensation		2nd–13th order (50% of rated current)
	Harmonic Filtering Efficiency		Complies with or exceeds JB/T 11067-2011 standard requirements
	Reactive Power Compensation		-1 to +1 adjustable (within rated capacity)
	Three-Phase Unbalance Compensation		100% full compensation
Communication Protocol	Communication Method		Modbus Protocol
	Communication Interface		RS485, Ethernet (optional), WiFi (optional)
	Host Computer Software		Available, all parameters can be set via host computer
	Fault Alarm		Available, up to 500 alarm records
	Monitoring		Supports individual module monitoring / centralized system monitoring
Technical Indicators	Full Response Time		≤20ms
	Efficiency		97.5%
	Cooling Method		Intelligent Forced Air Cooling
	Protection Functions		Overvoltage, undervoltage, overheating, overcurrent, short circuit and more than twenty other protections
Mechanical Characteristics	Module Weight		44KG
Mechanical Characteristics	Color		White RAL7035
Environmental Requirements	Operating Temperature		-10℃~+45℃
	Altitude		≤5000 meters (derating 1% per 100m above 1000m)
	Relative Humidity		≤95%, non-condensing
	Protection Degree		Module IP20 + Electronic Layer IP42
	Pollution Degree		2
